520cm panga boat PVC big width inflatable rib boat rib520A with sunbed center console rear cabin CE certificate

Certification
Good quality Small Rib Boat for sales
I'm Online Chat Now

520cm panga boat PVC big width inflatable rib boat rib520A with sunbed center console rear cabin CE certificate

China 520cm panga boat  PVC big width  inflatable rib boat  rib520A with sunbed center console rear cabin CE certificate supplier

Large Image :  520cm panga boat PVC big width inflatable rib boat rib520A with sunbed center console rear cabin CE certificate

Product Details:

Place of Origin: China
Brand Name: CMEC
Certification: CE
Model Number: Rib520A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiate
Packaging Details: Carton and weaving bag
Delivery Time: 8-10 days for sample
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 PCS per Month
Detailed Product Description
Materials: Fiberglass +PVC Length: 520cm Length
Weight: 400KGS Max Power: 90HP
Color: All Colors Chambers: 5
Max Person: 9

520cm panga boat PVC big width inflatable rib boat rib520A with sunbed center console rear cabin CE certificate



Here we give you some information on RIB as follows.



We offer a variety of choices for utility style or rescue style inflatable boats and RIB's. These boats meet the need for a larger utility boat that delivers great performance and function. Great for clubs,sailing organizations,commercial or rescue uses...or if you just want a boat to take out for fun. The 520 hypalon or PVC  models come with Hydraulic steering if you want , Navigation Chart Plotter,SS or fiberglass rollbar with navigation lights , 120L Aluminum  fuel tank, Full set of Gauges,  Deep V hull and more..these boats are ready to go.. They are available with a choice of outboard .



In addition to these Utility boats we offer the Mercury rib700 and rib730 a more luxury boat designed for comfort and make great play boats or larger yachtenders.



 Tender Series inflatable sports  with airmat floor or with aluminum panel floors. These boats come in a variety of sizes to fit requirements of the leasure tender market.





1. Specification





Model Length(cm) Beam(cm) Hull length(cm) Hull width(cm) No.of chamber Tube Dia.(cm) Max persons Engine power(HP) Net weight(kgs) Packing size(cm)
RIB520A 520 218 460 175 5 53 8+1 90 400 460*180*100



2. Standard Euipments :



center console with cushions(including windshield,4 point switch ,oil gauge), seat box(with cushions and SS frame roll) , bow box,steering system,FRP light arch or SS light arch  with navigation lights,bilge pump,fuel tank,+Foot pump; +Repair Kit; +boat cover





3. Optional Equipments :



 canopy ,teak floor,  boat trailer ,fiberglass step , butterfly archor  etc.



4.  Other Features :



 Rib520A  is made of  1.2mm Korea PVC , Or Hypalon 1000 Denier polyester fabric which has been specially coated on both sides with PVC or Hyaplon . The boat could be made of Hypalone fabric as per request

 Fiberglass hull

*Outside PVC layer offers:
Abrasion resistance;
Extreme condition resistance;
Chemical resistance.

*Inside high polyester fabric offers:
Dimensional stability;
Tensile and tear strength.



5. Warranty :



We also provide excellent after-sale services and 3 - 5 year (3 years for PVC , 5 years for Hypalon )

warranty of the hull and materials.Each boat comes with a repair kit containing the maintenance tools and materials(fabrid and glue).The replacement parts will be offered for free within warranty period.In the event that the boat has really quality defects within warranty period,we will offer free replacement parts after the receipt of the related pictures and descriptions supporting the factor锛 In case of serious quality problems ,a replacement boat will be sent to the customers with next order shipment.

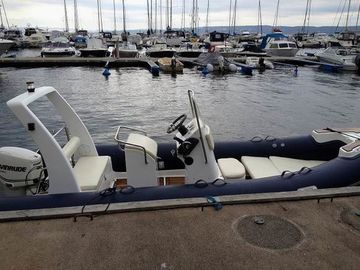

520cm panga boat  PVC big width  inflatable rib boat  rib520A with sunbed center console rear cabin CE certificate

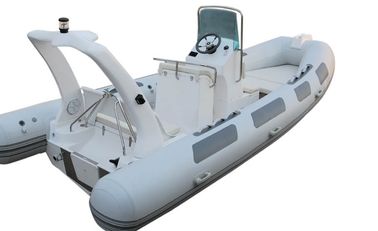

520cm panga boat  PVC big width  inflatable rib boat  rib520A with sunbed center console rear cabin CE certificate

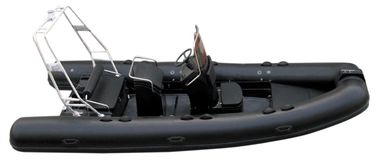

520cm panga boat  PVC big width  inflatable rib boat  rib520A with sunbed center console rear cabin CE certificate
